Purchase Notes:
1. If you need HD connection, please do not buy the Android version. Please choose the other two versions. Android does not support HDMI input because the Android chip only supports output, not input.
2. If you need to connect to a computer, please purchase the basic version. Do not choose the Android version. Android needs to connect to your own wifi. After connecting to the network, use the projector to surf the Internet directly, without a computer.
Body color: white

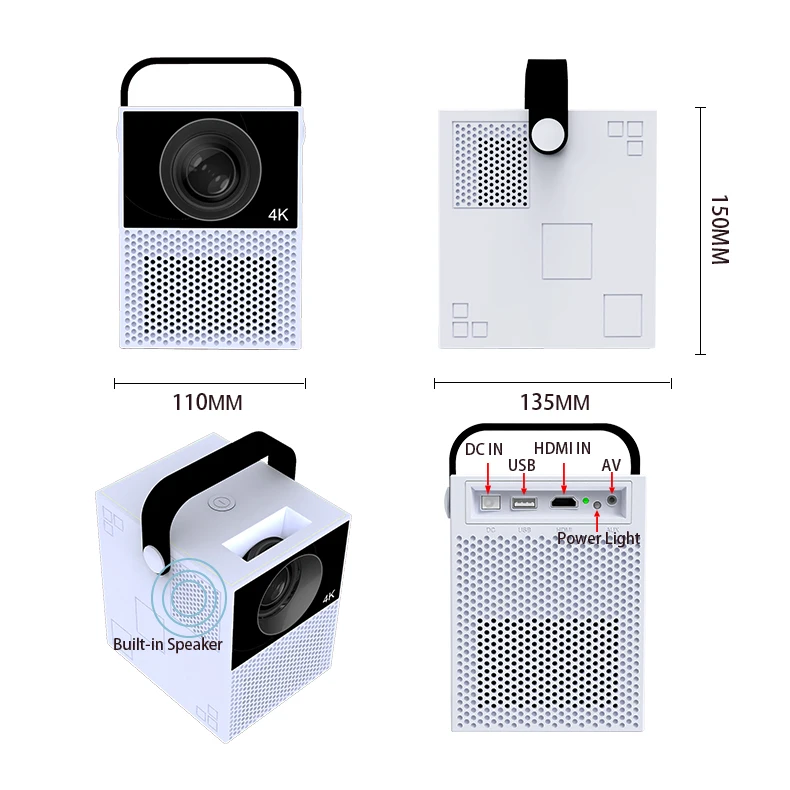

Body size: (L×W×H) 11*13.5*15 cm (the smallest 1080p single-chip projector on the market)
Body net weight: 1.05kg (very light weight, saving logistics costs)
Projection parameters
Display Technology: LCD
Projection light source: LED module
Projection light source life: more than 30,000 hours
Center brightness: typical 100ANSI lumens
Lamp Type :LED
Physical resolution: 1920*1080 (support 4K film source)

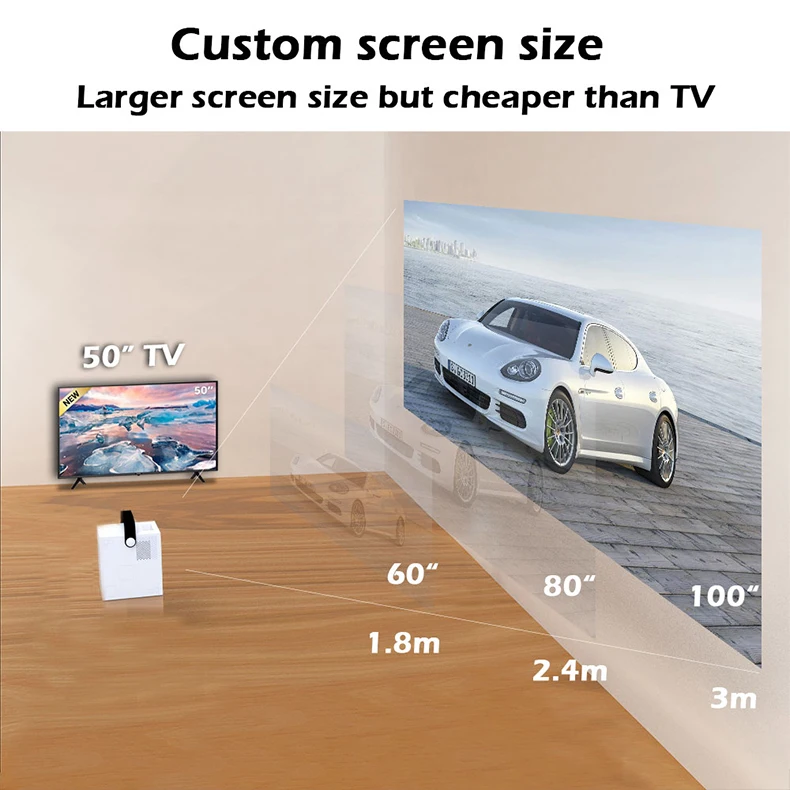

Projection size: 50-180 inches
Contrast: 1500:1
Throw ratio: 1.35:1
Uniformity :>75%
Projection distance: 1.5m-3m
Projection Aspect Ratio : 16:09
Focus mode: manual focus
Keystone correction: Automatic keystone correction (horizontal + vertical: ±40 degrees) (the first microcontroller on the market with automatic keystone correction)
Projection Mode: Front Projection Rear Projection Ceiling Projection
Off-axis function: 30%
System parameters
Same screen: support
System: Android 9
Solution: RK3228A
4 cores, A7 core, 1.2G
Processor: Mali400 MP2 GPU
Running memory: 1GB DDR3 (optional 2G)
Internal Storage: 16GB
WIFI: 2.4G/5G
Bluetooth: 4.0
Basic parameters
Built-in battery: optional
Video format: 4K HEVC H.265 MPEG-2 MPEG-4 H.264 VP8 VP9
Music format: MPEG1 Layer3 AC3 EAC3 AAC, HEAAC WMA LPCM IMA-ADPCM/MS-ADPCM
Image format: jpg, png, bmp, etc.
Extended storage: none
Remote control: support infrared and 2.4G wireless remote control
Built-in speaker: 2X3W
Optical power consumption: 40W
Standby power consumption: 2.5W
Machine power consumption: 65W
Interface HDMI X1
USB X1
3.5 Headphone output X1 (to be determined)
DC input 19V 3.74A
Input supports USB
